25.6V LiFePO4 Battery
25.6V LiFePO4 Battery

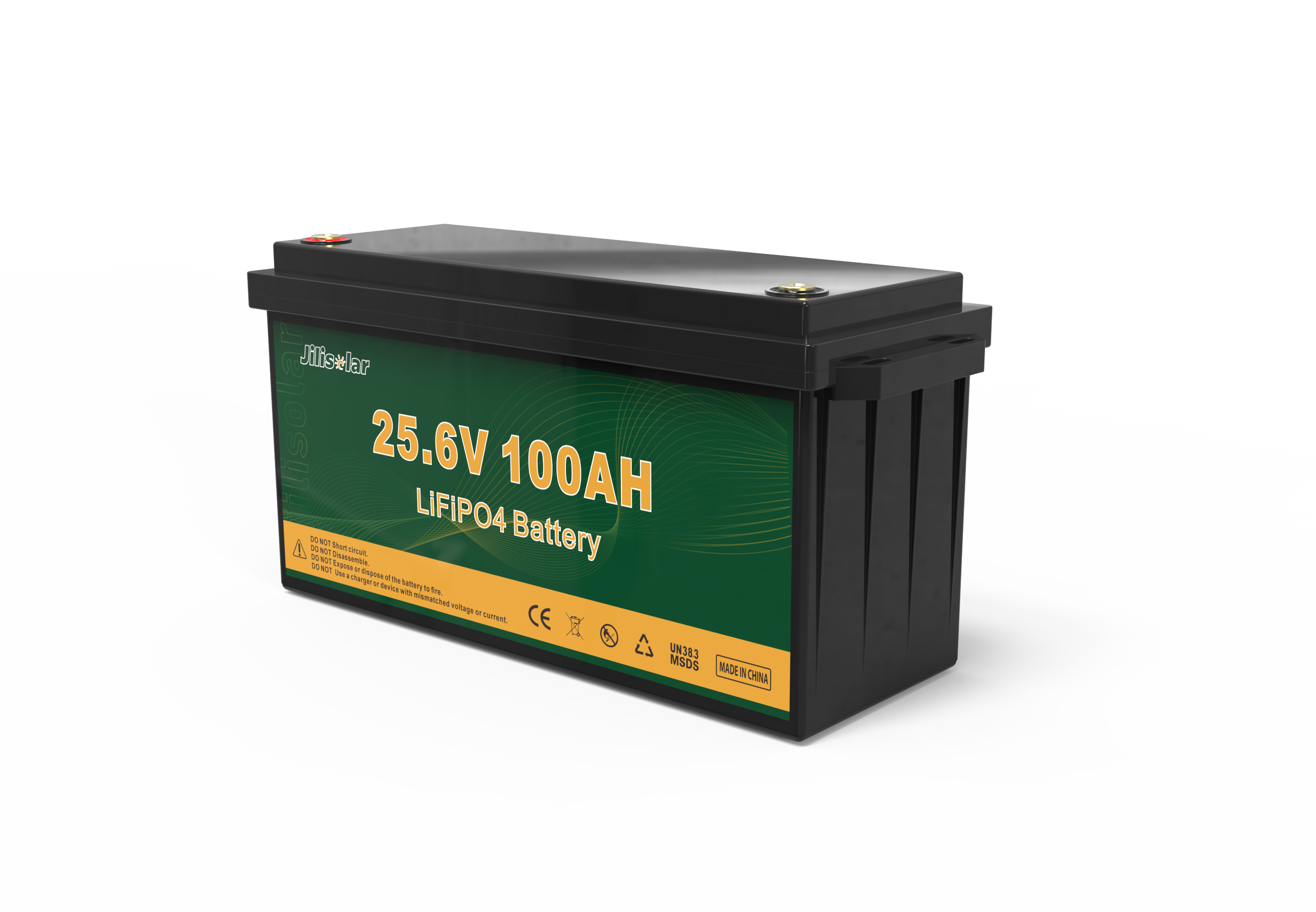

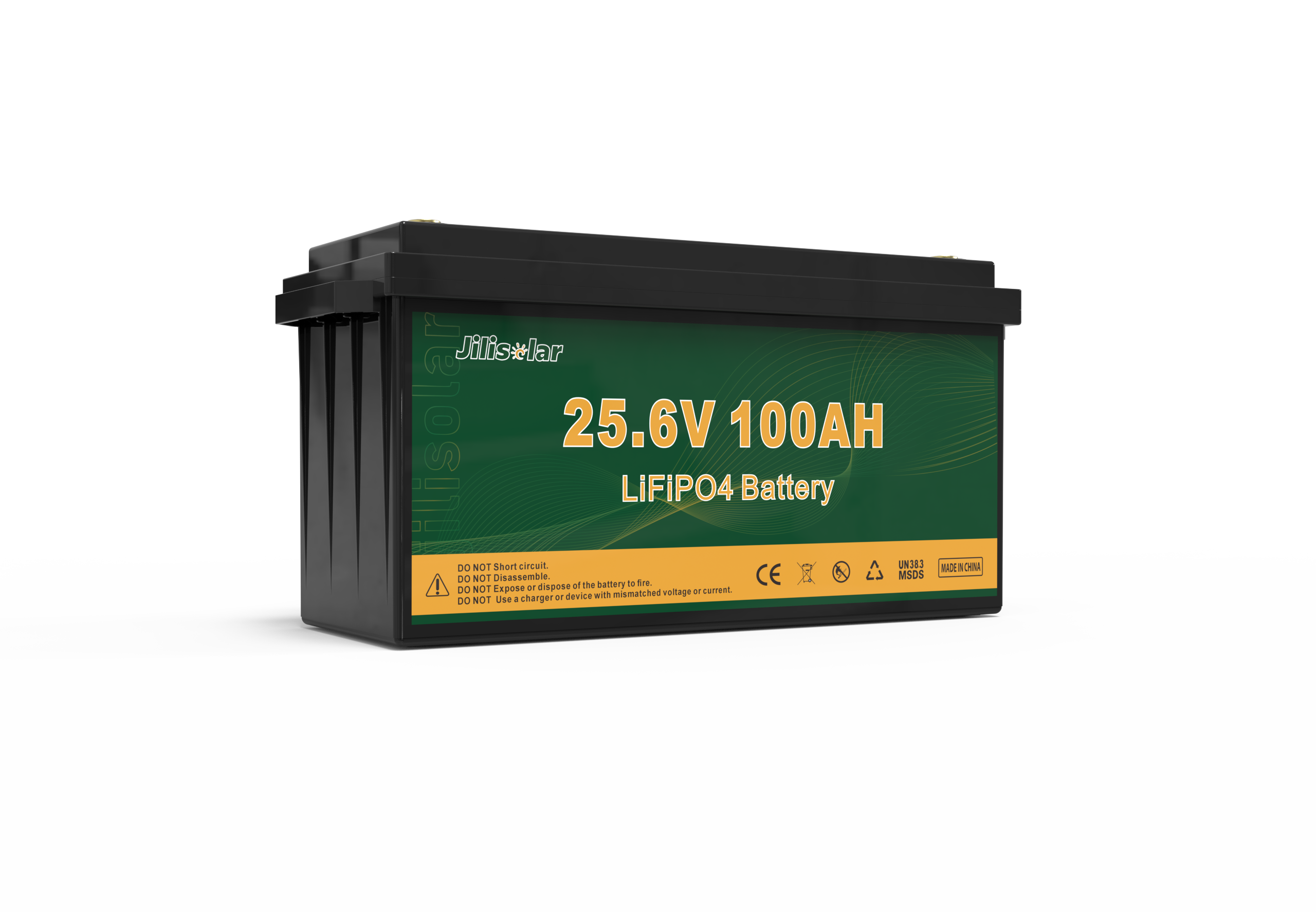

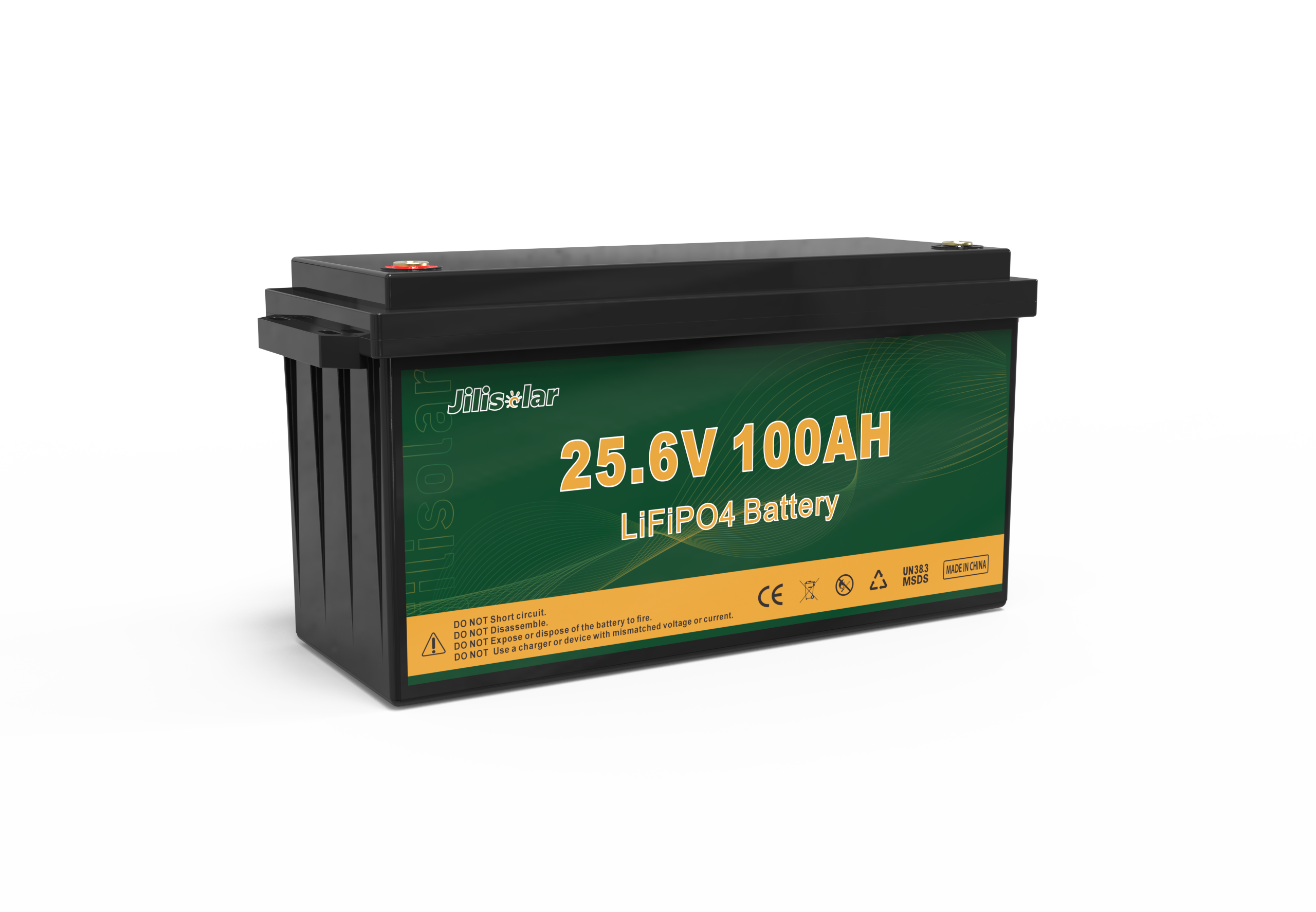

25.6V 100Ah LiFePO4 Battery
Contact us
Inquiry Basket
Product Code：
JL-BT-24100
OEM：
Available
Sample：
Available
Payment：
PayPal,VISA,MasterCard,Western Union,L/C,T/T
Place of Origin：
China
Shipping：
Sea freight · Land freight
Supply Ability：
1000 piece per Month
| Battery Type-Chemistry | LiFePO4 |
| Nominal Voltage | 25.6v |
| Nominal Capacity | 100Ah |
| Energy Density | 2560Wh |
| Dimensions (LxWxH) | 485x170x240mm |
| Weight | 21kg |
| Terminal Type | M8 |
| Terminal Torque | 8.5Nm |
| Case Material | ABS |
| BMS Built-in | Yes |
| Internal Resistance | <20m0 |
| AH Efficiency-round trip | ≥99.5% |
| Self-Discharging Per Month | <3% |
| Max in Parallel | 2 |
| Max in Series | 2 |
| Charging Voltage Range | 21.6-29.2V |
| Recommend Charge Voltage | 29.2V=02V |
| Max Charge Voltage | 29.2V0.2V |
| Recommend Charge Current | 20A |
| Max Continuous Current | 100A |
| Recommend Discharge Voltage | 22.4V0.2W |
| Max Discharge Voltage | 20W±02V |
| Max Continuous Discharge Current | 100A |
| Peak Discharge Current | 180Afor 3s |
| Cycle Life (0.2C,25C@80%DOD) | 6000 Cycle |
| Discharge Temperature | -20-60℃ |
| Charge Temperature | 0-45℃ |
| Storage Temperature | -10-301℃ |
