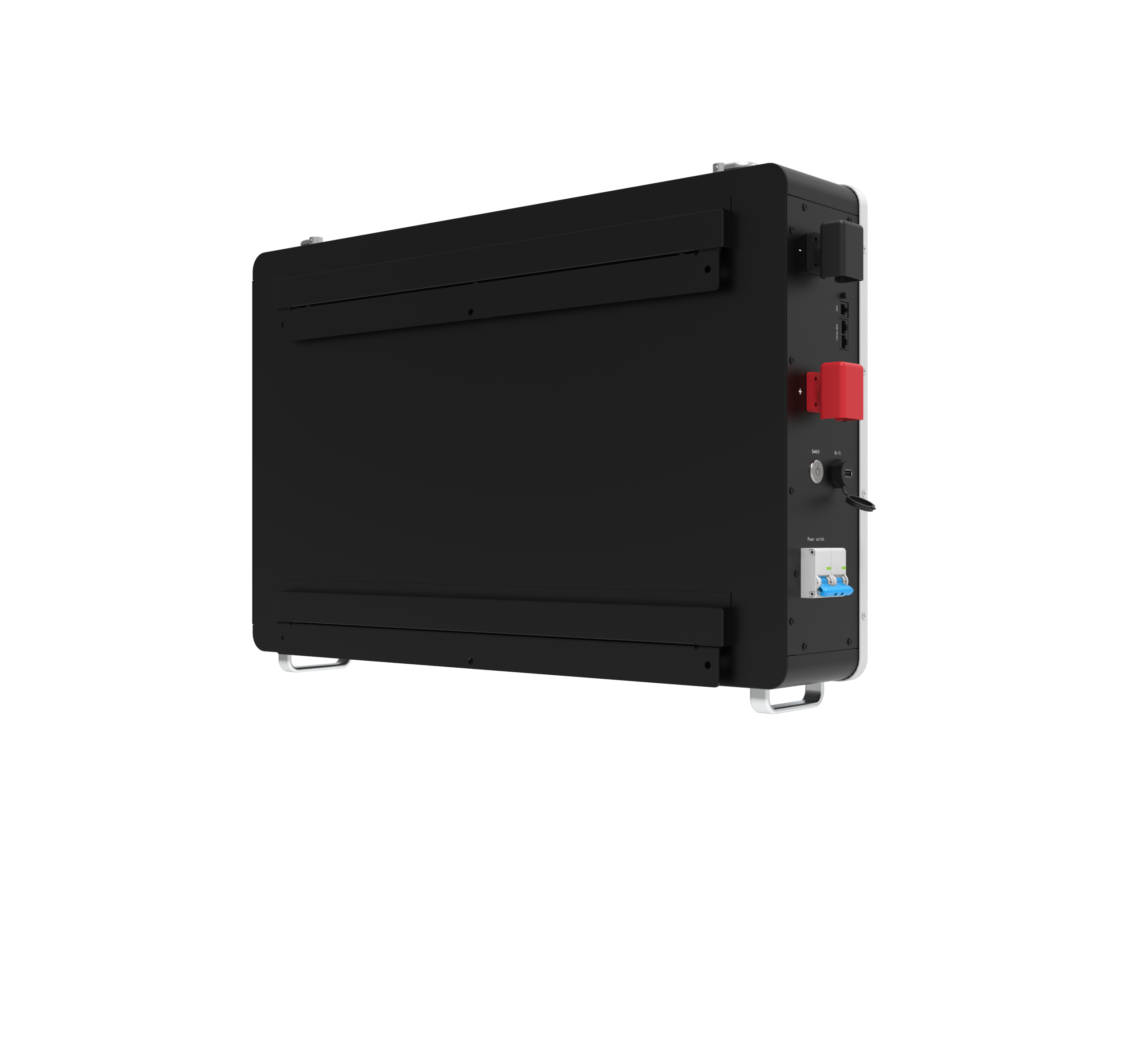

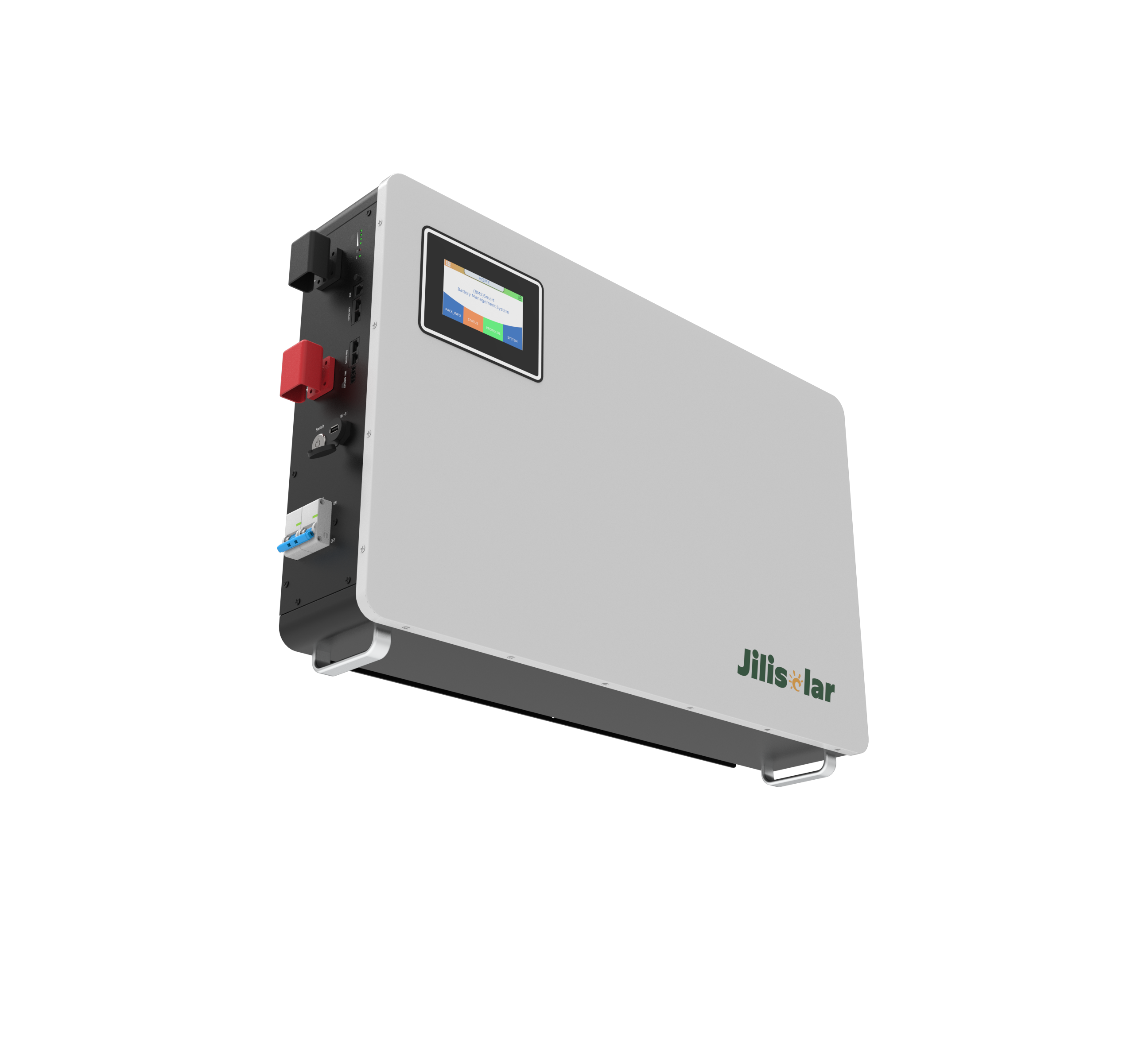

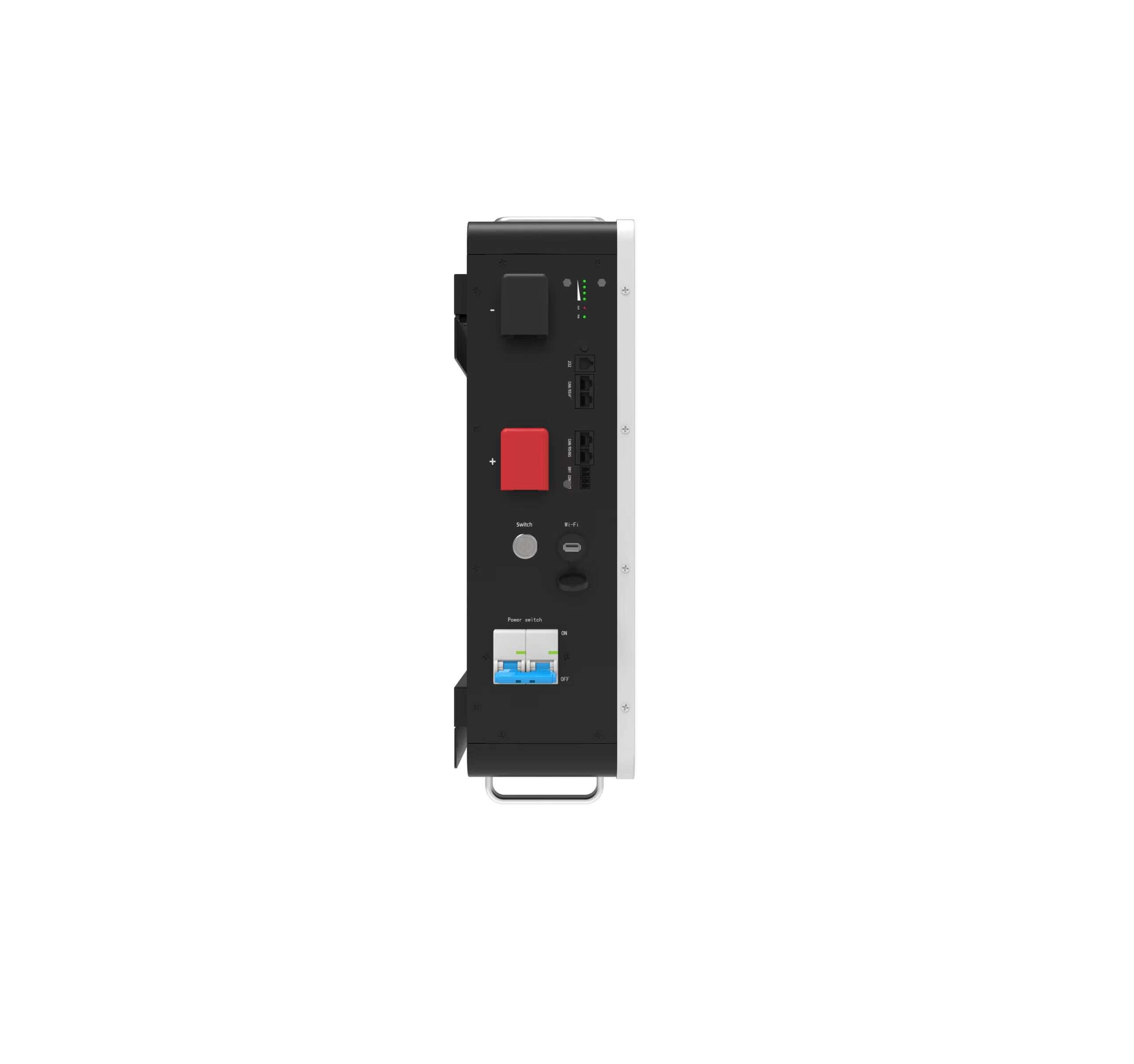

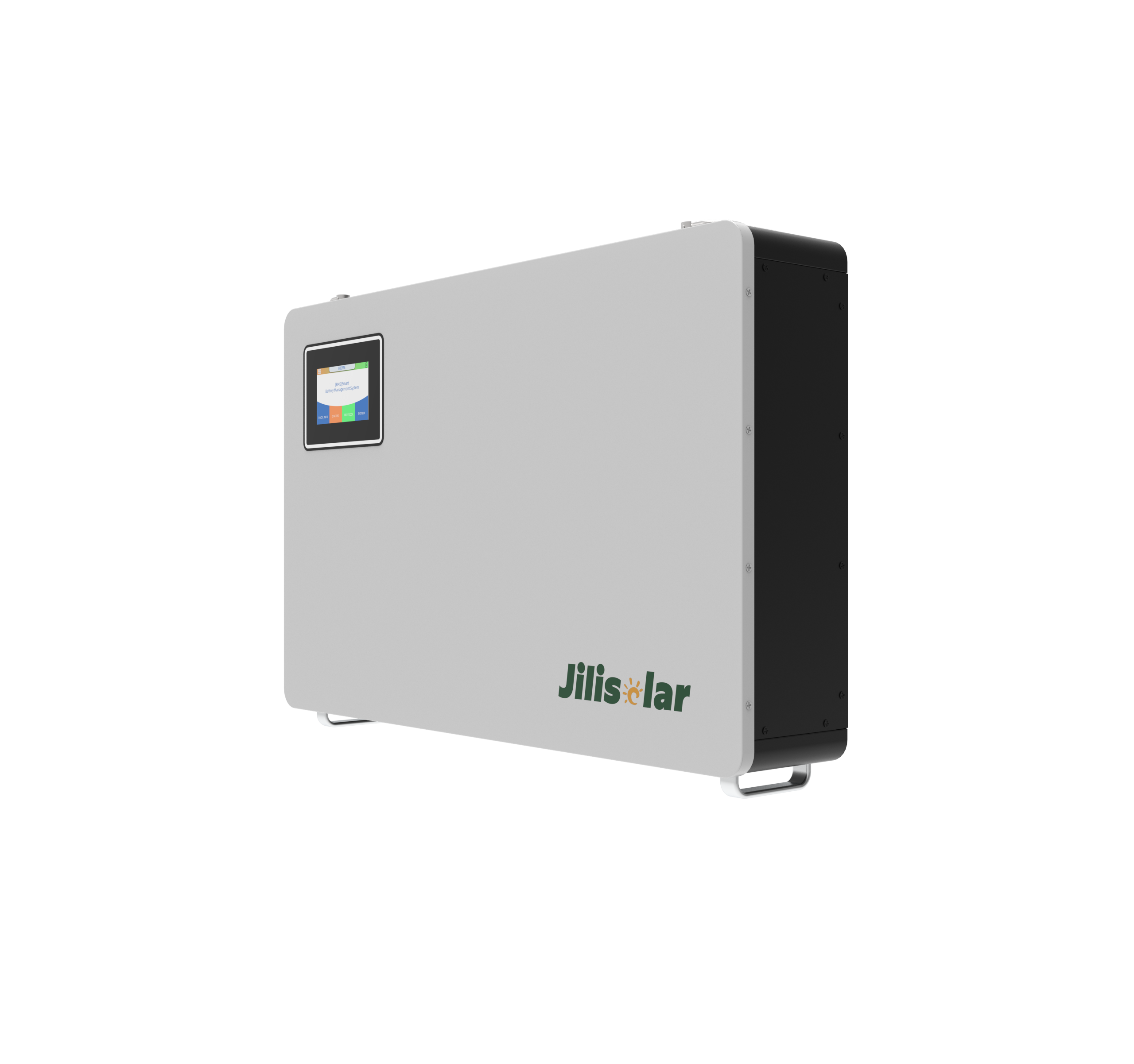

51.2V 184Ah Battery
51.2V 184Ah Battery
51.2V 184Ah Battery
Contact us
Inquiry Basket
Product Code：
JL-BT512184
OEM：
Available
Sample：
Available
Payment：
PayPal,MasterCard,VISA,Western Union,L/C,T/T
Place of Origin：
China
Shipping：
Sea freight · Land freight
Supply Ability：
500 piece per Month
| Battery Type | LiFePO4 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 184AH |
| Nominal Energy | 9.42kWh |
| Communication | CAN/RS485 |
| Resistance | ≤50mn@50%50C |
| Actual volumetric efficiency | ≥100%Nominal Energy |
| Recommended Charge Current | 2200A |
| Maximum Continuous Discharge Current | ≥100%Nominal Energy |
| Recommended maximum load power | ≥8kW |
| Ultimate Maximum load power | ≥10.24KW |
| Recommended Charge Voltage | 57.6V |
| BMS Charge Cut-Off Voltage | 58.4V |
| BMS charge cut-off release voltage | ≤57.6V |
| Balancing Voltage | ≥52.8V |
| Balancing open voltage | ≥52.8V |
| Recommended Low Voltage Disconnect | ≤45V |
| BMS Discharge Cut-Off Voltage | ≤40V |
| BMS Discharge Cut-Off release voltage | ≥46V |
| Discharge Temperature | ‘-4~131°F(-20~55°C) |
| Charge Temperature | ’-4~113°F(0~45°C) |
| Storage Temperature | 23~95°F(-5~35°C) |
| BMS High Temperature Cut-Off | 149°F(65°C) |
| Reconnect Temperature | 131°F(55°C) |
| Dimension(L x Wx H) | 681*451*152mm |
| Approx.Weight | 70KG |
| Enclosure Protection | IP54 |
| Certifications | CE(battery)UN38.3(battery)UL1642 IEC62133(cells) |
| Shipping Classification | UN 3480,CLASS 9 |
| Cycle life | 8000 Cycles(25C,100%DOD)for effectively lower total of ownership cost |
| Service life | 15 years |
