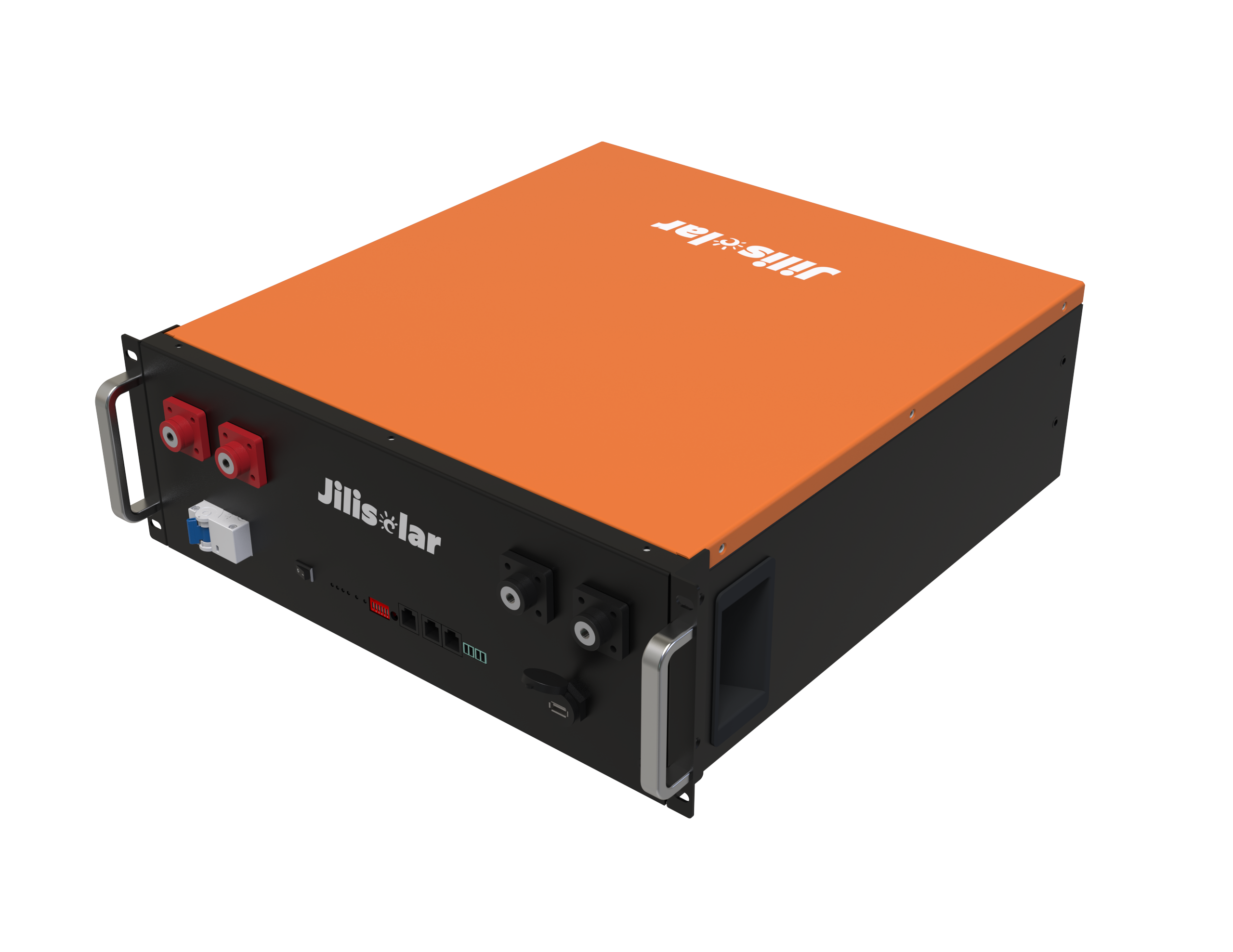

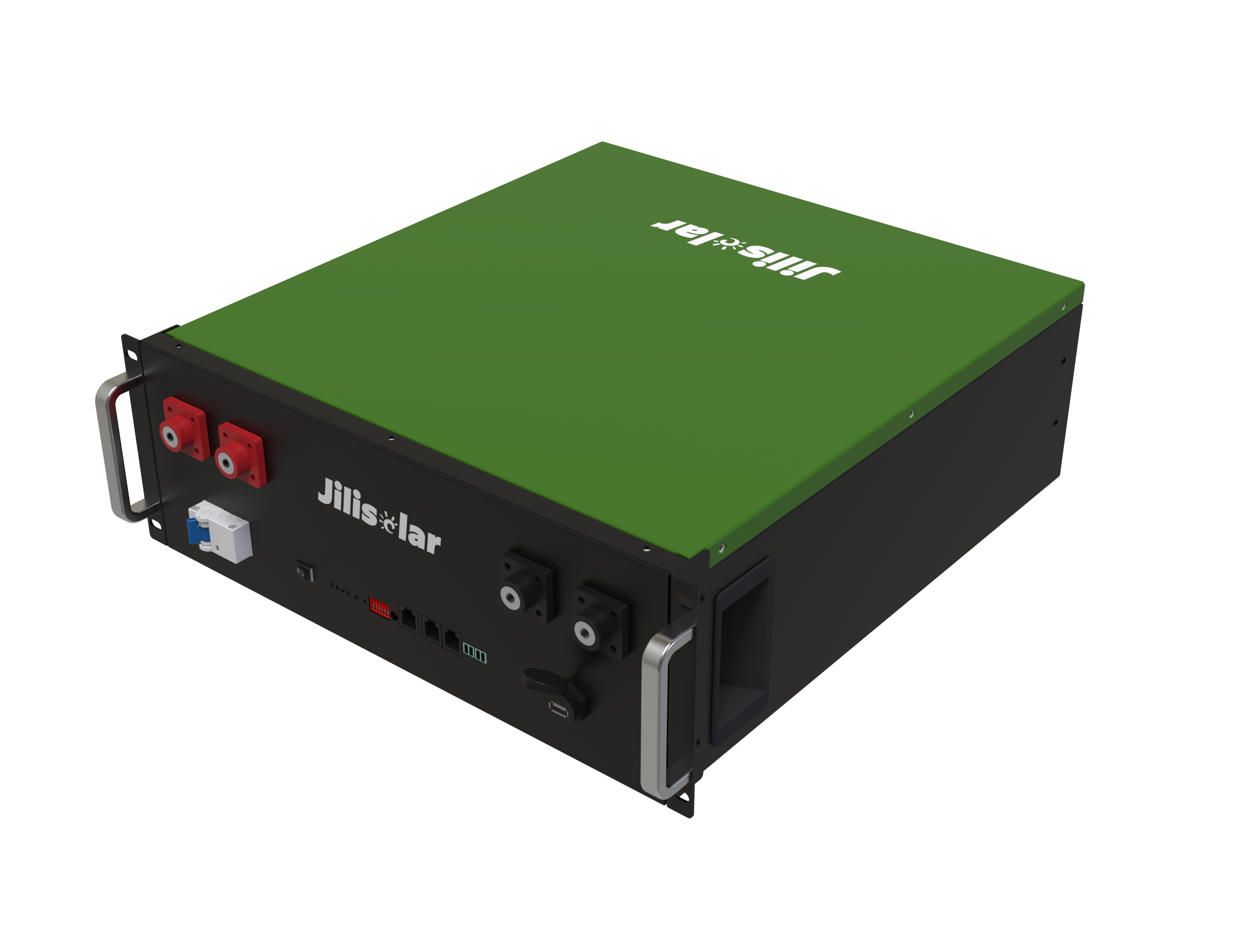

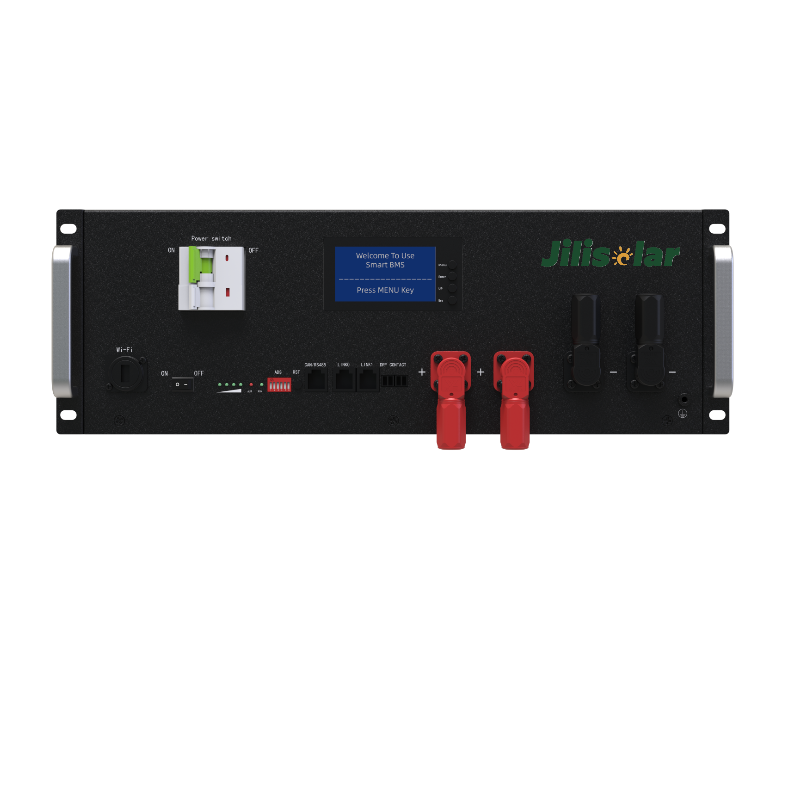

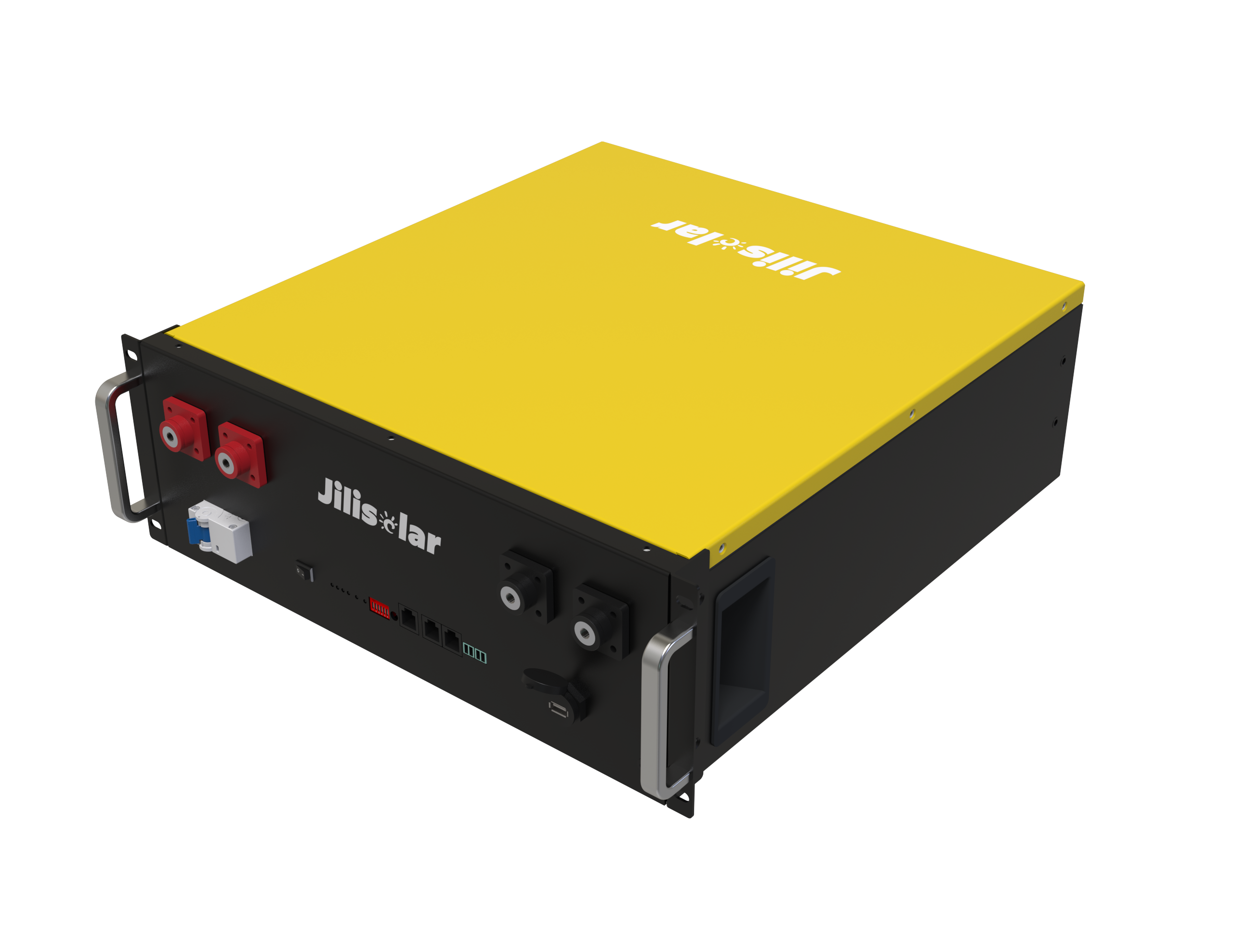

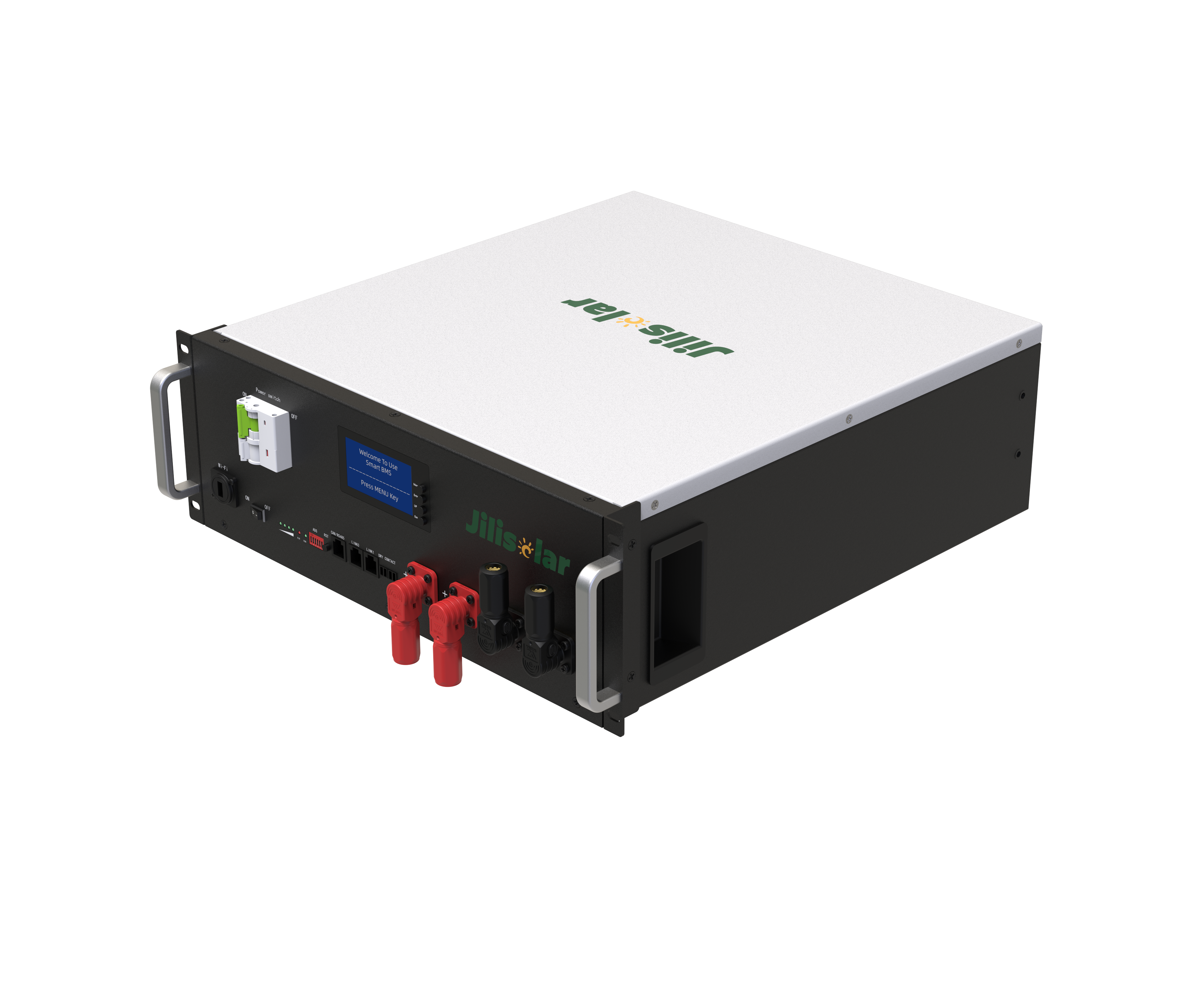

51.2V 100Ah LiFePO4 Battery
51.2V 100Ah LiFePO4 Battery
51.2V 100Ah LiFePO4 Battery
Contact us
Inquiry Basket
Product Code：
JL-BT-LF512100
OEM：
Available
Sample：
Available
Port：
SHENZHEN
Payment：
PayPal,VISA,MasterCard,Western Union,L/C,T/T
Place of Origin：
China
Shipping：
Sea freight · Land freight
Supply Ability：
500 piece per Month
| Battery Type | LiFePO4 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100AH |
| Nominal Energy | 5.12KWh |
| Communication | CAN/RS485 |
| Resistance | ≤50m2@50%SOC |
| Actual volumetric efficiency | ≥100%Nominal Energy |
| Recommended Charge Current | ≥100A |
| Maximum Continuous Discharge Current | ≥100%Nominal Energy |
| Recommended maximum load power | ≥4KW |
| Ultimate Maximum load power | ≥5.12KW |
| Recommended Charge Voltage | 57.6V |
| BMS Charge Cut-Off Voltage | 58.4V |
| BMS charge cut-off release voltage | ≤57.6V |
| Balancing Voltage | ≥52.8V |
| Balancing open voltage | 252.8V |
| Recommended Low Voltage Disconnect | ≤45V |
| BMS Discharge Cut-Off Voltage | ≤40V |
| BMS Discharge Cut-Off release voltage | ≥46V |
| Discharge Temperature | -4~131F(-20~55℃) |
| Charge Temperature | -4~113F(0~45℃) |
| Storage Temperature | 23~95F(-5~35℃) |
| BMS High Temperature Cut-Off | 149F(65℃) |
| Reconnect Temperature | 131F(55℃) |
| Dimension (L x Wx H) | 490*442*161mm |
| Approx.Weight | 53KG |
| Enclosure Protection | IP54 |
| Certifications | CE(battery)UN38.3(battery)UL1642 IEC62133(cells) |
| Shipping Classification | UN 3480,CLASS 9 |
| Cycle life | 8000 Cycles(25C,100%DOD)for effectively lower total of ownership cost |
| Service life | 15 years |
